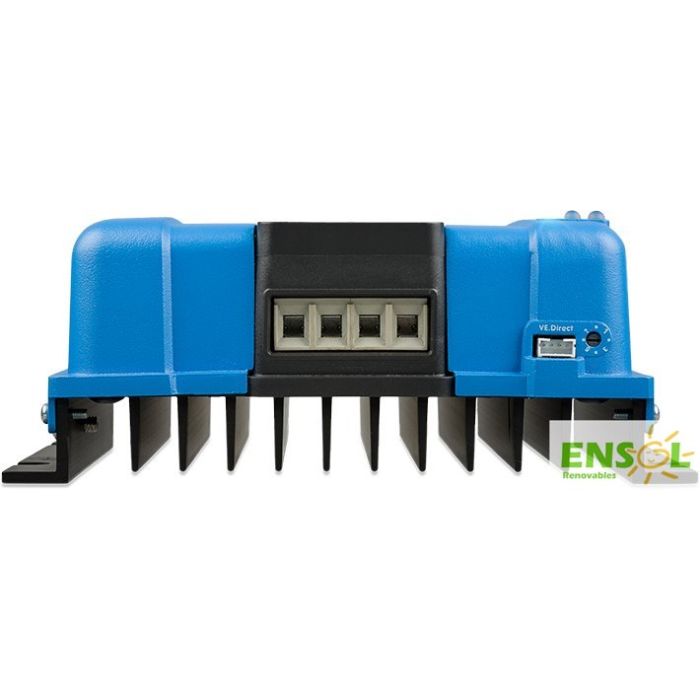

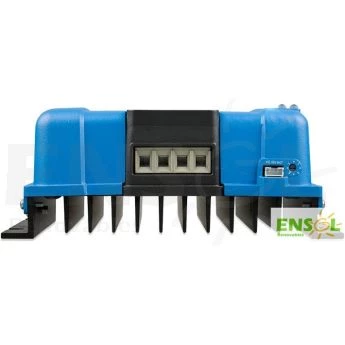

Vctron SmartSolar MPPT 100/50
The Victron Smartsolar MPPT 100/50 charge controller charger gathers energy from your solar panels, and stores it in your batteries.
Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Ultra-fast Maximum Power Point Tracking
The Victron SmartSolar MPPT optimizes battery charging by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a (long-range wide area network) device.
Voltages: 12 y 24V (autodetect)
Máximum charge current: 50A
Max. solar array: 700W (12V) or 1400W (24V)
Máx. fv array VOC: 100V
Max short circuit current: 60A
Max Efficiency: 98%
Selfconsumption: 30mA (12V)/20mA 24V
Charging alogarithm: Adjustable: Multistep variable
Temp compensation (ºC):-16mVºC (12V) / -32mVºC (24V)
Protection: electronic short circuit/overtemp
Working temp: -30ºC hasta +60ºC. Full power upto 40ºC
Max humidity: 95%
Size wxlxb: 130x186x70 mm
Complies: EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16
