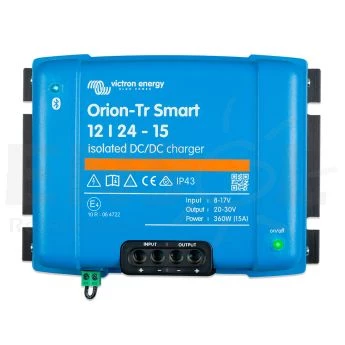

Victron Orion Tr SMART 12/24-15A (360W) power converter 12>24v

The Victron Orion-Tr Smart 12/24-15A is an isolated DC-DC converter designed to convert a 12V DC input to a 24V DC output with a maximum current of 15A.
This device is ideal for applications where you need to convert 12V DC to 24V DC, such as in vehicles, boats, and off-grid systems.

Key Features:

• Efficient voltage conversion
  Converts a 12V DC input to a 24V DC output efficiently, suitable for powering 24V batteries or devices that operate at 24V.

• Built-in Bluetooth connectivity
  Allows for remote monitoring and configuration via the VictronConnect app, providing real-time data and customization options.

• Isolated design
  The electrical separation between input and output prevents ground loops and enhances system safety.

• Parallel operation
  Multiple units can be connected in parallel to increase output power, allowing the system to be scaled according to needs.

• High temperature performance
  Can operate up to 55°C, providing full nominal power up to 40°C.

• Motor running detection
  Includes an automatic motor detection system, enabling automatic activation in vehicles.

Technical Specifications:

• Input voltage range: 10-17V DC
• Output voltage range: 20-30V DC
• Maximum output current: 15A
• Output power: 360W
• Efficiency: Up to 95%
• Operating temperature: -20°C to +55°C (with power reduction above 40°C)
• Dimensions: 130 x 186 x 70 mm
• Weight: 1.8 kg
