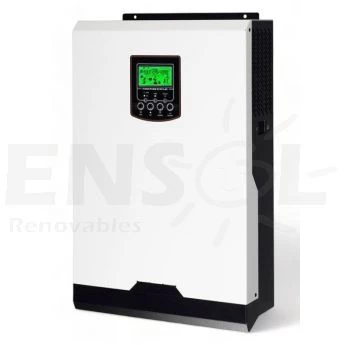

Voltronic Axpert VM 3kW PLUS Inverter/Charger and 60A MPPT Solar Controller
Voltronic VM 3kW Plus Puresine, high efficiency PF1, 3kW inverter + mains battery charger and a 60A MPPT solar controller, all in one. 120Amps of total charging power between solar and grid/generator.
Site 100% secured by means of SSL certificate and business adhered to Confianza Online.
Delivery time from 1 (MRW) to 5 (Rhenus) working days for products in stock or from receipt of payment by bank transfer, Paypal, Bizum and credit card.
Voltronic Axpert VM 3000 MPPT Puresine, high efficiency inverter + mains battery charger + mppt solar controller, all in one.
BEWARE that other companies are offering the 30A pwm or MPPT inverter, and not our 60A MPPT versión!!
Very exhaustive tests have been done on these electronics.
A powerful high efficiency 3 Kva nominal puresine inverter, a 60A battery charger an a sophisticated 60A MPPT solar charge controller.
Mains or generator, batteries and solar array can all be connected to just one electronic device, drastically reducing needed installation space.
Must say it was a nice surprise to see how programmable the unit is, even more configurable than the better known brands
Tota priority can be assigned to the solar array (energy used directly, and rest taken from battery if realtime solar production is not enough, and prioritize solar charging to mains/generator input, all this fully programmable by user.
As its an all-in-one product, another advantage is that all voltage readings are very precise,as its a single unit with all the integration being perfectly calibrated.
The LCD displays lets you toggle thruogh the fully configurable menu's optimizing preferences for each user
Main Features
- Puresine high efficiency power inverter
- Fully programmable voltages
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Electronic overload and short circuit protection
- Selectable battery types
- Smart battery charger design for optimized battery performance
- Cold start function
Technical Parameters:
- Working Voltage: 24Vdc
- Max. mains battery charger current: 60A
- Standby power drain: 2W
- Max nominal power 3000VA (3000W) PF 1.0
- Solar controller: 60 A MPPT (1500W nominal, 145Voc)
- 230Vac 50Hz output
-
Size (mm): 100 x 300 x 440
-
Weight: 9,5Kg
Warranty: 2 years
| Peso | 8.000000 |
|---|---|
| Brand | Voltronic Power |
