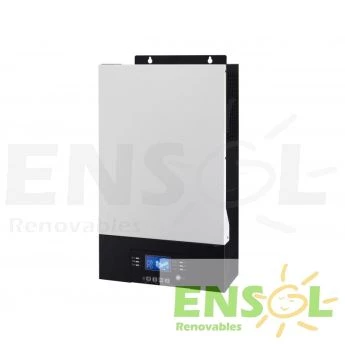

Voltronic VMIII 5kW 48V Inverter/Charger and 80A MPPT Solar Controller in one

The Voltronic Axpert VMIII is a Puresine, high efficiency inverter + mains battery charger + powerful, wide range input solar charge controller, all in one.

A very powerful and high efficiency 5 kW nominal output puresine inverter, with an incorporated 60A battery charger + a sophisticated MPPT 80A Solar Controller that will eficiently handle a solar array of upto 5kW

Mains or generator, batteries and solar array can all be connected to just one single electronic device, drastically reducing needed installation space.

A very complete, programmable unit is, even more configurable than the better known brands!!

Total priority can be assigned to the solar array (energy used directly, and rest taken from battery if connected and realtime solar production is not enough, and prioritize solar charging to mains/generator input, all this fully programmable by user).

As its an all-in-one product, another advantage is that all voltage readings are very precise,as its a single unit with all the integration being perfectly calibrated.

The LCD displays lets you toggle thruogh the fully configurable menu's optimizing preferences for each user

Main Features

• Auto restart while AC is recovering
• Electronic overload and short circuit protection
• Selectable battery types agm(gel/flooded and lithium compatible
• Smart battery charger design for optimized battery performance
• Cold start function
• USB RS232 RS485 and bluetooth communication interface

Technical Parameters:

• DC Working Voltage: 48V
• Max. mains battery charger current 80A
• Puresine high efficiency power inverter
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator
• Standby power drain: 1W
• Max nominal power 5000w (power factor 1)
• Max power surge: 10000VA
• Mppt Solar controller: 80 A
• Mppt range : 120-450VDC
• Max PV VOC: 500VDC
• 230Vac 50Hz output
• Size (mm): 115x300x400
• Weight: 10 Kg

Warranty: National, 2 years
