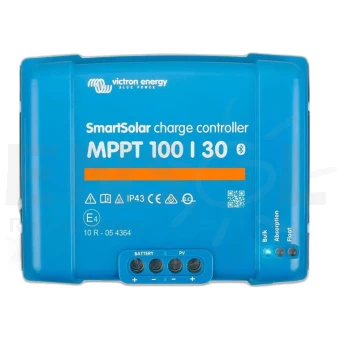

Victron SmartSolar MPPT 100/30

€252.89
In stock

The Victron Bluesolar MPPT 100/30 charge controller charger gathers energy from your solar panels, and stores it in your batteries.

Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

  • Secured shopping

    Site 100% secured by means of SSL certificate and business adhered to Confianza Online.

  • Fast shipping

    Delivery time from 1 (MRW) to 5 (Rhenus) working days for products in stock or from receipt of payment by bank transfer, Paypal and credit card.

Ultra-fast Maximum Power Point Tracking

The Victron BlueSolar 100/30 MPPT optimizes battery charging by constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a (long-range wide area network) device, available optionally.

Specifications:

Voltages: 12 y 24V (autodetect)

Máximum charge current: 30A

Max. solar array: 440W (12V) or 880W (24V)

Máx. fv array VOC: 100V

Max short circuit current: 60A

Max Efficiency: 98%

Selfconsumption: 30mA (12V)/20mA 24V

Charging alogarithm: Adjustable: Multistep variable

Temp compensation (ºC):-16mVºC (12V) / -32mVºC (24V)

Protection: electronic short circuit/overtemp

Working temp: -30ºC hasta +60ºC. Full power upto 40ºC

Max humidity: 95%

Connections: 13mm2

Size wxlxb: 130x186x70 mm

Weight: 1,25kgs

Complies: EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16

More Information
Peso 1.500000
Brand Victron Energy
length 7
width 13
height 19
