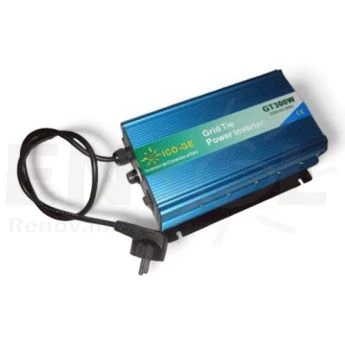

Grid-Tie Inverter IcoRED300

A small DIY grid connected inverter to save money on your electric bills!!

With our IcoRED300, an average of upto 2 kWh can be generated daily reducing your electric bill. the energy produced by yourself, will not be read through the meter from your electric company thus not be charged for at the end of the month.

The installation of the inverter is very simple; solar panels are connected to the positive and negative terminals on one side of the inverter and on the other side, a normal plug is pushed into any socket in the house to start saving.

As soon as it's plugged in and led's start to chase, power is being injected to the mains and your energy saving begin!!.

Ideal solution for saving money, for a greener setup or to give use to those unused solar panels.

Téchnical parametrers:

• Max. power: 300W
• Working voltage: 190~250Vac
• Frequency: 50Hz
• THD: <5%
• Power Factor: 0.99
• Input voltage range: 14-28Vdc
• Peak efficiency: 92%
• Stand-by: <1W
• Wave from output: Senoidal pura
• MPP tracking
• Stackable

Protections:

• Overcurrent
• High Temperature
• DC Polarity reverse
• Islanding
• Working temperature: -5~45ºC

Weight: 2,5 Kgs

Size (mm): 220x170x60

Warranty: 2 years
