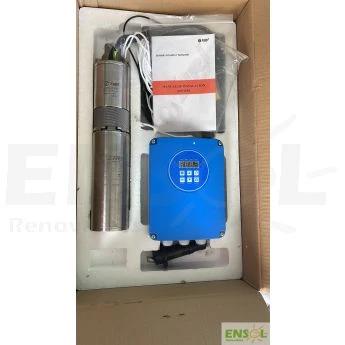

Zirí 3SH15-160-96V Solar Pump with upto 160mts lift

ZiriSolar Solar Pump with upto 160mts lift.

The Ziri Solar 3SH1.5-110/96V pumps is part of a sustainable, economic and efficient pumping development, using the most available energy source: the SUN

The permanent magnet motor offers a long, maintenance free life and can pump and work on speeds of upto 3600rpm, depending on connected solar panels.

Its completely reinforced and can manage incredibly high pressures and therefore it doesnt have any mechanical sealing, so no risk of leaking due to wear. It improves efficiency due to lack of fricton and helps cool motor.

The (external) electronics optimize the efficiency by MPPT

Main purposes:

• Water supply
• Irrigation
• Industrial use
• Live stock water
• Filtrering
• Ponds and fountains
• Etc...

The incorporated frequency variator increases the pumps' efficiency upto 95% through its MPPT controller. This controler is directly fed by solar energy and will start to pump as soon as enough solar energy is available.

3x 450Wpanels are more than enough to get maximum performance.

Float swtch or manual swith can be installed to turn pump on/off.

Well probe included.

Protected against

• Running dry
• Overload
• Overcurrent
• Over and undervoltage
• Missing phase
• Overtemperature
• reverse spinning

Technical details:

• Nominal operating voltage: 96 VDC
• Max power voltage Vpm: 80-140 VDC
• Max. solar voltage (VOC): 150 VDC
• Vertical elevation:: 160 mtr

Examples:

• Open circuit -no elevation-:  1.6 m³/h
• Flow @ 160 metros: 0.54 m³/h (with 1350Wp solar)
• Recommended solar power for maximum performances:1350 W
• Pump Diameter: 3"
• Pump length: 40cms
• Type: Helicoidal
• Hose connection: 3/4"
• Weight: 6 kg (8.4 with controller)
