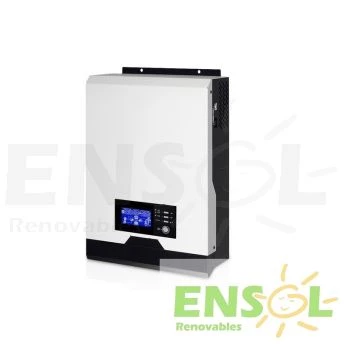

Voltronic Axpert 1000 - 1kW Inverter/Charger + 40A MPPT Solar Controller
We proudly present the Voltronic Axpert 1000
Puresine, high efficiency inverter + mains battery charger + MPPTsolar controller, all in one. Ideal for critical loads in on-grid houses and small offgrid installations. Save a lot of money on your electric bill!!
Site 100% secured by means of SSL certificate and business adhered to Confianza Online.
Delivery time from 1 (MRW) to 5 (Rhenus) working days for products in stock or from receipt of payment by bank transfer, Paypal, Bizum and credit card.
The Voltronic Axpert VM1000/12 MPPT is a high quality Puresine, high efficiency inverter + mains battery charger + 40A MPPT solar controller, all in one.
Heavy tests have been done by ourselves in these 3-in-1 electronics.
A powerful high efficiency 1 kW nominal puresine inverter, a 20Amp battery charger when connected to the grid or generator an a sophisticated 40amp MPPT solar charge controller.
Mains or generator, batteries and solar array can all be connected and programmed to just one electronic device, drastically reducing needed installation space.
The programmable parameters on the unit is pretty fascinating and the unit is even more configurable than the better known brands.
Total priority can be assigned to the solar array (energy used directly, and rest taken from battery if realtime solar production is not enough, and prioritize solar charging to mains/generator input, all this fully programmable by user).
As its an all-in-one product, another advantage is that all voltage readings are very precise,as its a single unit with all the integration being perfectly calibrated.
The LCD displays lets you toggle thruogh the fully configurable menu's optimizing preferences for each user
Main Features
- Puresine high efficiency power inverter
- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Electronic overload and short circuit protection
- Selectable battery types
- Smart battery charger design for optimized battery performance
- Cold start function
Technical Parameters:
- Working Voltage: 12Vdc
- Max. mains battery charger current: 20A
- Standby power drain: 1W
- Max nominal power 1000VA (1000W) PF1
- Solar controller: 40A MPPT
- MPPT Voltage range 17-80VDC
- Max PV VOC: 105VDC
- 230Vac 50Hz output
- Size (mm): 88x225x320
- Weight: 4.4 Kg
Warranty: 3 years
| Peso | 5.000000 |
|---|---|
| Brand | Voltronic Power |
| length | 20 |
| width | 30 |
| height | 50 |
