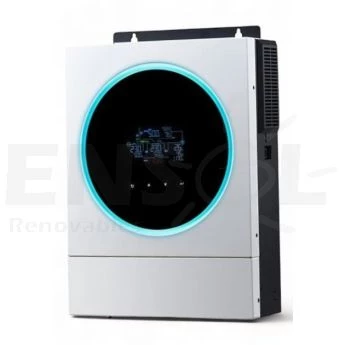

Voltronic Axpert IV 3600W inverter charger with 120A MPPT
Voltronic Hybrid Inverter Axpert MAX 24V 3600W with 120A MPPT.
This inverter is Voltronics' most advanced model. Bluetooth connectable with the mobile app. This new device allows full configuration of equalization and absortion times and voltages to optimally charge the batteries. It incorporates a 0 mS transfer relay and can automatically start a generator. CanBus port, prepared and calibrated for Pylontech Lithium batteries. Load statistics as daily and total consumption are recorded with the possibility of downloading data via USB. 3600W of power, and handles upto 4000W of solar power
Voltronic Hybrid Inverter Axpert MAX 24V 3600W with 120A MPPT solar charge controller.
This inverter is Voltronics' most advanced model. Bluetooth connectable with the mobile app. This new device allows full configuration of equalization and absortion times and voltages to optimally charge the batteries. It incorporates a 0 mS transfer relay and can automatically start a generator. CanBus port, prepared and calibrated for Pylontech Lithium batteries. Load statistics as daily and total consumption are recorded with the possibility of downloading data via USB. 3600W of power, and handles upto 4000W of solar power
Features:
- Power: 3600W (Power Factor 1)
- Voltage in: 230 VAC with Selectable Voltage Range: 170-280V / 90-280V
- Working frequency: 50 Hz / 60 Hz (Automatic detection)
- Output: AC Output Voltage (Batt. Mode): 230V
- Peak power: 7200VA
- Efficiency: 90% to 93% Pure Sinusoidal Wave
- Baterias: Voltage: 24VDC
- Solar Regulator: MPPT type regulator (maximum power point tracking)
- Maximum photovoltaic power: 4000W MPPT
- Solar array Voltage Range: 90-500VDC
- Maximum open circuit voltage: 500VDC
- Maximum current: 120A MPPT
Warranty: National, 3 years
| Peso | 14.000000 |
|---|---|
| Marca | Voltronic Power |
| length | 55.3 |
| width | 14.7 |
| height | 43.2 |
