Three-phase Chint Smartmeter DTSU666 100A with 3 CT's and SEC for SAJ

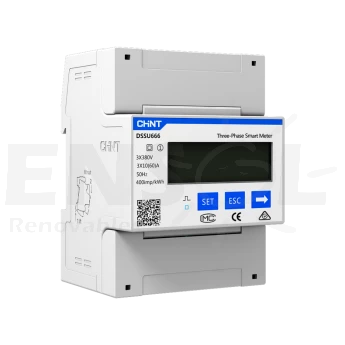

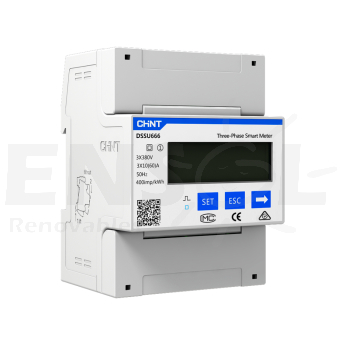

Chint DTSU666 100A Smart Meter with 3 CT for Three-Phase Hybrid Inverters

This Three-Phase Monitoring Kit is an advanced solution for tracking and measuring energy in three-phase power systems. It includes the Chint DTSU666 Three-Phase Wattmeter and an SEC device for data collection, providing a complete and accurate real-time monitoring system.

Key Features:

• Intelligent and programmable design: Allows real-time measurement of electrical parameters such as voltage, current, active and reactive power, frequency, power factor, and more.
• LCD display: Provides a clear and detailed visualization of monitored data.
• Advanced connectivity:
  • Communication via RS485, compatible with the DL/T645-2007 protocol and customizable for MODBUS-RTU.
  • Capable of collecting and transmitting data with high accuracy, ensuring reliable monitoring.
• Time-based scalability: Supports measurements in peak, high, flat, and low periods, optimizing energy consumption analysis.
• Practical and standard installation:
  • DIN rail mounting (DIN35mm).
  • Compatible with SAJ inverters, ensuring seamless and efficient integration.

Technical Specifications:

• Indirect measurement: Uses 3 current transformers (CTs) to accurately record the consumption of each phase.
• High compatibility: Designed for residential, commercial, and industrial installations.
• Measured parameters: Voltage, current, frequency, active and reactive power, power factor, etc.

This is the ideal tool for obtaining detailed energy data and improving efficiency in photovoltaic installations or three-phase power systems. Its integration with SAJ inverters ensures optimal and comprehensive energy management.
