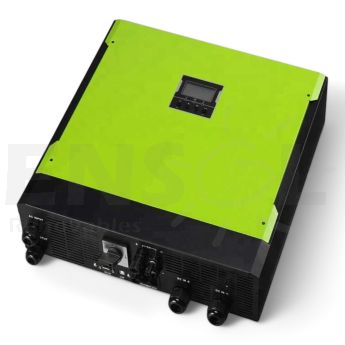

Hybrid Infinisolar 5.5 kW Inverter

The Voltronic InfiniSolar E 5.5kW is a hybrid inverter designed to combine solar energy sources, batteries, and the electrical grid, providing a continuous and efficient power supply. Below are its main technical features:

Main Features:

• Pure sine wave output: Ensures optimal power quality for connected devices.
• Self-consumption and grid feed-in: Allows consuming the generated energy and, if there is a surplus, feeding it into the electrical grid.
• Programmable power source priority: The user can define the preferred energy source, whether photovoltaic, battery, or grid.
• Adjustable battery charging current: Adapts to different battery types based on specific needs.
• Multiple operating modes: Includes grid-tied, off-grid, and grid-tied with backup modes.
• Built-in timer: Facilitates scheduling for different operating modes.
• Multiple communication options: Compatible with USB, RS-232, Modbus, and SNMP for monitoring and control.

Key Technical Specifications:

• Maximum PV input power: 6.5 kW
• Nominal output power: 5.5 kW
• Maximum DC input voltage: 500 V
• MPPT voltage range: 120 VDC ~ 450 VDC
• Number of MPPT trackers: 2
• Maximum conversion efficiency (DC/AC): 96%
• Dimensions (Height/Width/Depth): 445x450x110 mm
• Weight: 16 kg

This inverter is suitable for residential and commercial applications, especially in areas where the power grid is unstable or where optimizing the use of renewable energy is a priority. Its ability to operate in parallel (up to 6 units) allows for flexible expansion based on energy needs. Additionally, it can function with or without batteries, offering versatility in its implementation.
