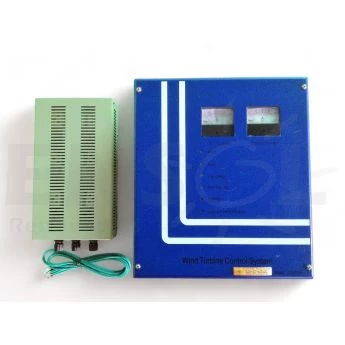

PV/Wind Hybrid controller 24/1000

The new analog readout hybrid Wind and Sun charging controller distributed by Generador-Electrico.com can store electrical power generated by both wind turbine and solar panels into the battery bank, and is the perfect solution for all systems.

This PWM charge controller is appropriate for 600W, 750W and 1000W turbines, and also allows a small solar array to be attached.
The controller is not only compact and easy to operate, but includes full overcharge protection, low-voltage protection, and automatic dump-load functions for the turbine.

The controller is a PWM charger, very reliable and safe in operation.
High efficiency and long service life is assured.
Cut-out voltages can be internally adjusted with the potentiometers

Features

• PWM charging protects the storage batteries from being overcharged and energy can be fully utilized
• Microcontroller assures accurate voltage control
• easy to read analog VUmeters
• Perfect protections
• Automatic and manual brake ensures that the wind turbine operates safely and reliably
• Rated Voltage: 24Vdc
• PV maximal input power: 150Wp
• Wind turbine nominal power: 750~1000
• Over-charged protection voltage: adjustable 26-35V
• Operation Ambient temperature:-20°C~50°C
