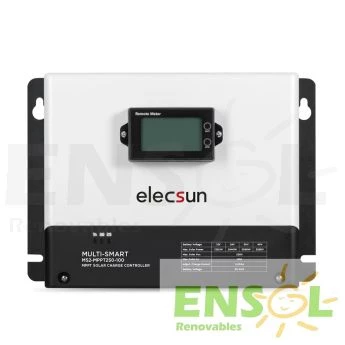

MPPT Charge controller ELECSUN 100A 12/24/36/48V 250V MULTI-SMART MS2-MPPT250/100

MPPT Charce controller ELECSUN 100A 12/24/36/48V 250V MULTI-SMART MS2-MPPT250/100 with bluetooth and display

The MPPT MULTI-SMART MS2 maximizer regulator is specially designed for use in isolated installations,  intelligenty charging batteries (including lithium ones) through solar panels.

The MULTI-SMART MS2 stands out for its high efficiency and features, easy configuration from the LCD screen, and advanced connectivity.

The MULTI-SMART series are a safe value for use in isolated photovoltaic solar energy installations.

Characteristics:

• High DC input voltage up to 250V; It allows to considerably reduce the cable section necessary between panels and the regulator.
• Built-in MPPT algorithm, increases solar system energy efficiency and charging efficiency up to 20% compared to traditional PWM regulators.
• MPPT tracking efficiency up to 99.9%. Charge programming options, including gel batteries, open and sealed lead acid, lithium, and introduce customizable options.
• Current limit mode; When the solar panel exceeds a certain level and the charging current is greater than the rated current, the controller automatically lowers the charging power and brings the charging current to the rated current.
• utomatic battery voltage detection. LCD screen that allows configuration as well as information on operation.
• Stored in historical memory for up to one year.
• It supports the Modbus standard protocol, facilitating communication connections (electrically isolated).
• Parallelable.
• Built-in overtemperature protection mechanism.
• High efficiency and performance

The MS2 range includes bluetooth as standard, which allows it to be consulted and configured through its APP for smartphones. The LCD screen of the MS2 regulators is removable and has an RS232 connection compatible with cable and DB9 connectors, which allows it to be used as a wired remote monitor.
