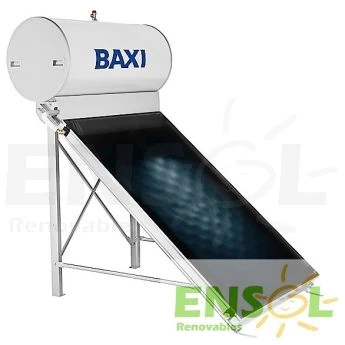

Baxi STS 200L Thermosyphon Solar Hot Water Kit

The Baxi STS 200 is a complete economic high quality thermosyphon hot solar water system supplying 200 litres of (very) hot water for free.

• Ideal for all houses in Spain, and must be installed in new buildings by law.
• Easy to install. Delivered with system's needed pipes.
• Can be backed-up with optional electric heater or an existent gas boiler in case of adverse weather conditions when desired temperature is not reached.
• Doble circuited system; panels have antifreeze running through them to avoid freezing, which does the actual water heating
• 850ºC vitrified steel tank
• 2m2 laser welded absorber for maximum performance
• All needed accesories and structure included (usable for both flaat and inclined rooftops

Size (installed) (WxHxL mm): 1305 x 1962 x 1565

Primary cicuit volume: 9,6L

Tank size: 580x1305mm

Tank volume: 200L

Isolator and thickness: 50mm Poliurethanee.

Max working pressure: 8 Bar

Max working temp 102ºC

Connector size: 1/2"

Dry Weight (with structure and without water) 115kg

10 year warranty

Sloped and flat surface ready
