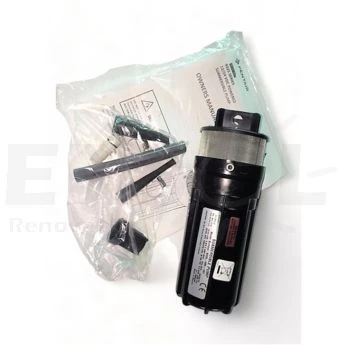

Shurflo 9325 submersible solar pump

The Shurflo 9325 is a positive displacement diaphragm pump with a very high efficiency, which can be operated on any 24 volt battery system, or with the use of one of the Shurflo Pump Controls also directly with a 160Wp solar array.

The pump can typically lift 4.92 liters per minute to a height of 70m, and nearly 10 liters from very shallow wells.

Typical applications include drip irrigation, stock and wildlife watering, remote homes and cabins.
A very recommended accesory is the pump optimizer either the simple controller or the version with probes for maximum performance and extra pump protection.

Characteristics:

• Nominal Voltage: 24 V DC
• Displacement: diaphragm pump
• Motor: Permanent magnet with overheat protection
• Material: Corrosion resistant
• Maximum pumping height: 70 m
• Max. Pumping capacity: depends on lift
• Submerible (max. water depths): 30 m
• Internal by-pass: 7,2 – 7,6 bar
• Input: Stainless: steel slieve
• Output flange; 13 mm for hose 13mm
• Dimensions 305 x 95mm
• Weight 2,72 kg.
