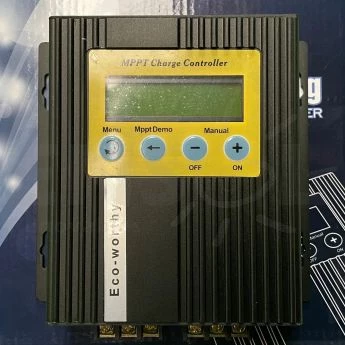

Compact 12/24 20A MPPT solar controller

Manufactured by EcoWorthy; super-reliable digital MPPT solar controller.
For panels upto a maximum of 360Wp (12V) or 720W (24V) with a 5 to 50V Voc input with an optimized output for reliable 12/24V battery charging.

Multiple -5- selectable consumer-time output.

Digital display for direct readout of Panel, battery situation and performance.
Affordable and very effective.

Big LCD Display
3 Stage Charge Control
Over and over discharge protected

Technical Data
Input voltage range 5~50V
Charge start volt/ charge stop volt 6V/4V
Nominal input voltage 17V
Nominal input current 20A
Max.l input solar panel size upto 360/720Wp 12/24V
Max.charge efficiency/MPPT efficiency >92%/>95%

Solar charge efficiency increase upto 43%

Overcharge protection 13.8V ±0.5V
Float voltage 14.4V ±0.5, 1min charging per 10min
OUTPUT:
Output load: Max 16A DC
Over discharge 11.5VDC
16 Timer settings 2,4,6,8 hours etc.
Battery voltage at sleep mode 11.5Vdc ±0.5
Self consumption <1mA @ sleep Mode
Output wire: 20cm PVC wire
Size LxWxH) 200×142×50 mm
Weight 1kg
